IM-L Packaging Machine With Linear Weigher

IM-L Packaging Machine IM-L Packaging Machine With Linear Weigher

IM-L Packaging Machine with Linear Weigher is the ideal machine for packaging grain products. Let’s take a look at the features of this machine.

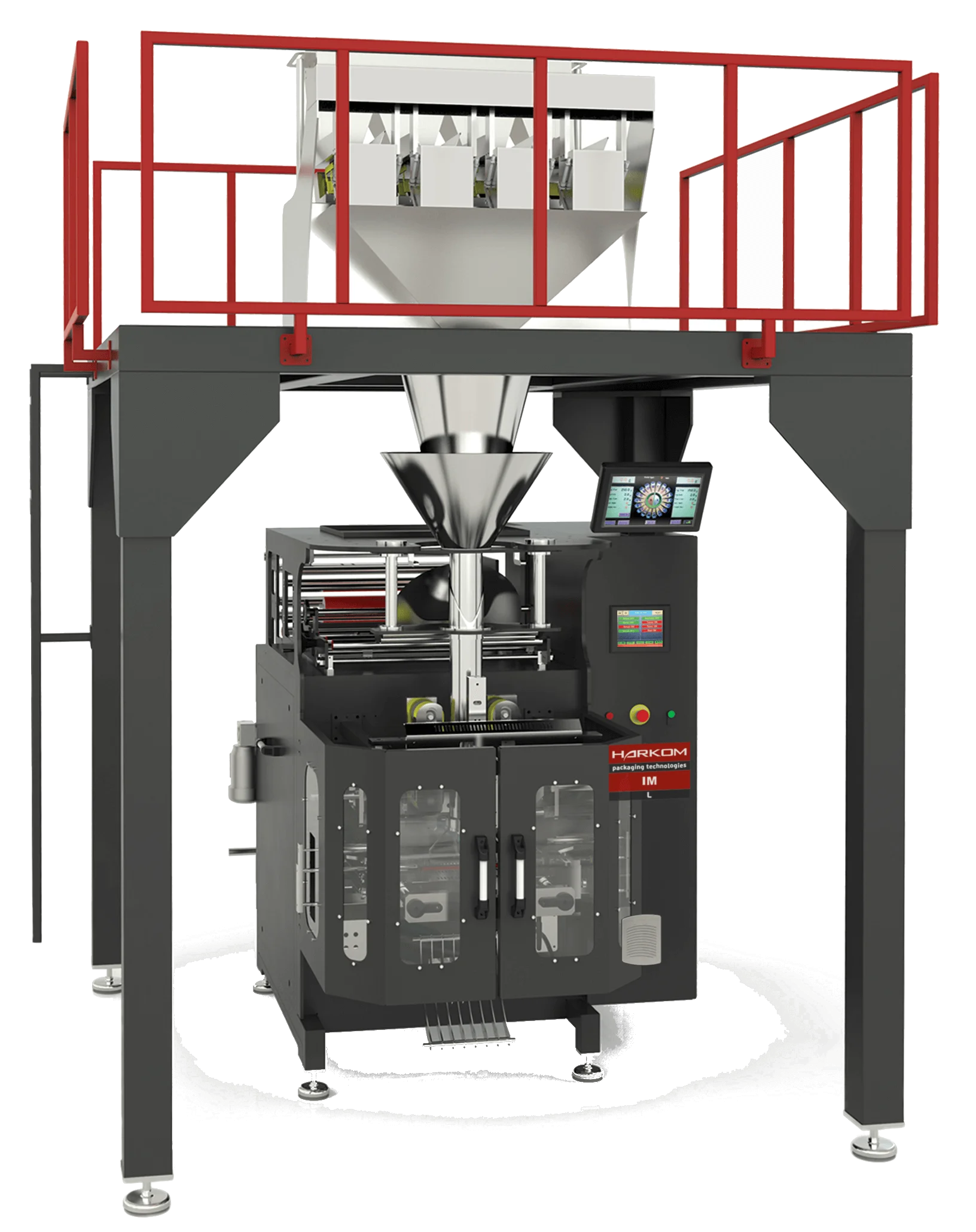

IM-L Linear Weighing Packaging Machine

IM-L Linear Weighing Packaging Machine is suitable for packaging of grain products. Linear fillings unit control the weight. Available in 2 or 4-channel versions depending on product type and packing speed. Precise filling is made by vibrating linear feeding channels with variable vibration settings. Filling accuracy depends on product type and density. All surfaces in contact with the product are AISI 304 stainless steel and suitable for foods. Easy to change collar set allows quick change of package types. Easy adjustable speckle sensor for precise package length adjustment.

The automatic stop operation due to the continuously controlled printer error prevents unprinted and incorrect printing. IM-L Linear Weighing Packaging Machine has AC motor driven film feeding unit. Pneumatically driven horizontal jaw pressing and cutting unit provides accurate proportional operations. Depending on the type of packaging, cold or hot bonding techniques can be applied. Film tension is continuously controlled. Coil centering is provided with precise edge control. with the option of using it in different languages and its easy-to-use touch screen. Installation of IM-L Linear Weighing Machine conforms to CE standards.

Optional Equipment:

  • Nitrogen filling unit
  • Screw feeding unit
  • Output Conveyor
  • Vacuum belt
  • Eurohole / Strap Hole
  • Printer with barcode and date writing

Contact us for different type of packages, products and capacities.

Technicial Specifications

Width IM290 3500mm / IM400 3500mm
Length IM290 2650mm / IM400 2650mm
Height IM290 3670mm / IM400 3910mm
Weight IM290 1250kg / IM400 1300kg
Production Speed (Number/Min) 75
Package Length IM290 60mm-350mm / IM400 60mm-700mm
Package Width IM290 60mm-270mm / IM400 60mm-380mm
Film Coil Diameter 300mm
Film Coil Width IM290 130mm-580mm / IM400 130mm-830mm
Power Consumption 7.5 Kw
Operating Voltage 380V 3 Phase 50Hz
Air Consumption 215 Lt/Dakika - Minute
Air Pressure (min.) 5 Bar
