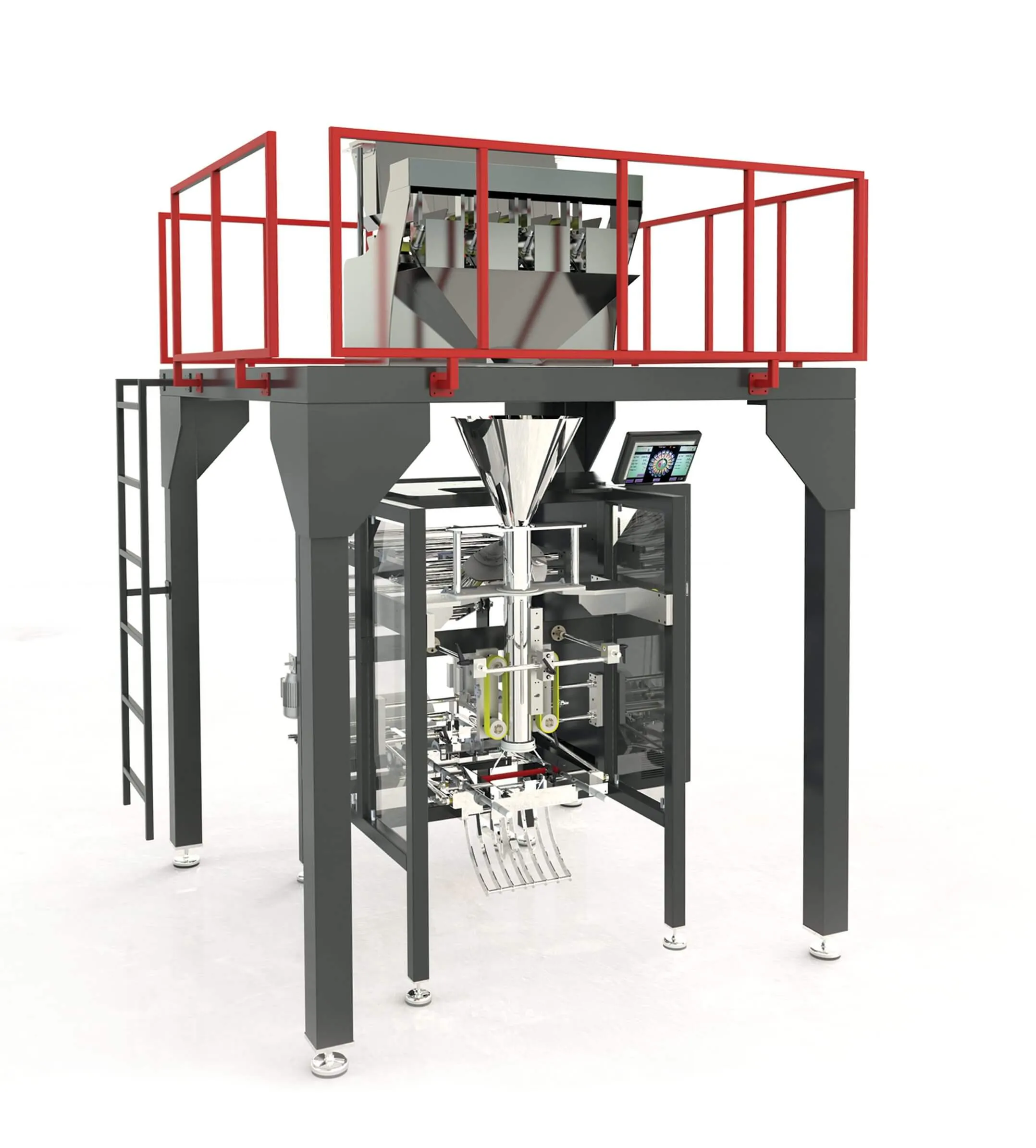

BM-L Packaging Machine With Linear Weigher

BM-L Packaging Machine - Harkom paketleme makinesi modelleri BM-L Packaging Machine With Linear Weigher

BM-L Packaging Machine with Linear Weigher is one of the most interesting packaging machines. Let’s take a look at the features of BM-L Linear Weighing Packaging Machine.

BM-L Linear Weighing Packing/Packaging Machine

The BM-L Linear Weighing Packaging Machine is very suitable for the packaging of granular products. Weight control is possible with the linear filling unit. 2 or 4-channel versions are also available. Precise filling is made by vibrating linear feeding channels. Filling accuracy can be change depending on product type and density.

All surfaces in contact with the product are AISI 304 stainless steel and suitable for food. Easy capture kit set. It is able to design easy speckle. Continuous control of the printer is connected to the automatic stopping process is avoided unprinted and incorrect printing. Bike sliding film riding unit with AC motor. Pneumatic orientation horizontal jaw welding and cutting unit is made more robust. Cold or hot welding techniques depending on the type of packaging. It is capable of assembling in accordance with CE standards.

You can make your operations easier by the options of using different languages and the easy-to-use touch screen. The product is very popular with users and allows you to do more with the processing speed. By this way you can fit more packaging in less time.

Optional Equipment:

  • Nitrogen filling unit
  • Screw feeding unit
  • Output Conveyor
  • Vacuum belt
  • Euro hole / Strap Hole
  • Printer with barcode and date writing

Contact us for different type of packages, products and capacities.

Technicial Specifications

Width BM290 3500mm / BM400 3500mm
Length BM290 2650mm / BM400 2650mm
Height BM290 3670mm / BM400 3910mm
Weight BM290 1000kg / BM400 1050kg
Production Speed (Number/Min) 50
Package Length BM290 60mm-350mm / BM400 60mm-700mm
Package Width BM290 60mm-270mm / BM400 60mm-380mm
Film Coil Diameter 300mm
Film Coil Width BM290 130mm-580mm / BM400 130mm-830mm
Power Consumption 5.5 Kw
Operating Voltage 380V 3 Phase 50Hz
Air Consumption 215 Lt/Dakika - Minute
Air Pressure (min.) 5 Bar
